FROST Bead Roller Metal Fabrication Forming Dies

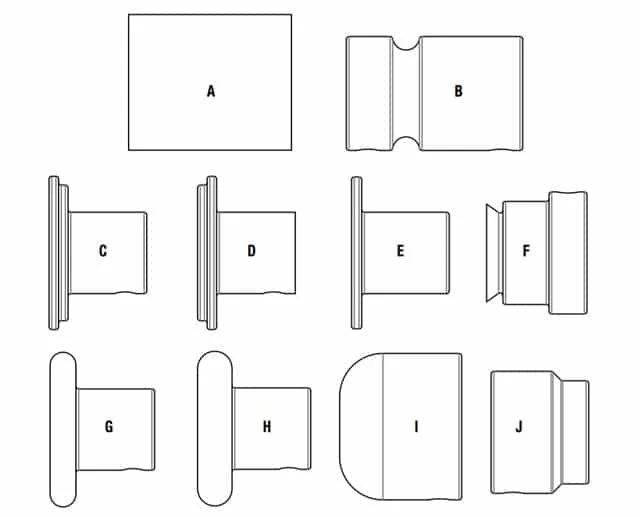

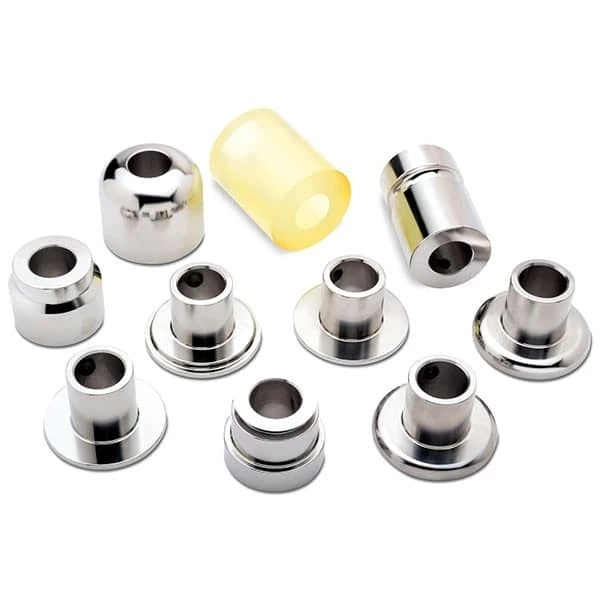

This kit includes an additional 10 dies to use with any bead roller with a 22mm shaft. With these additional dies on your bead roller you can create offset flanges, contours, deep channels, and style lines. This kit also includes a polyurethane lower “skate board” wheel, which can be used with a variety of upper dies. The dies includes in this kit are inside and outside offset dies, 3/8 and 1/2 inch tipping dies, round and knife edge tipping dies, 180 degree lower die, lower edge forming die and a lower forming die. All are made of CR12 steel with a Rockwell hardness of 35 HRC.

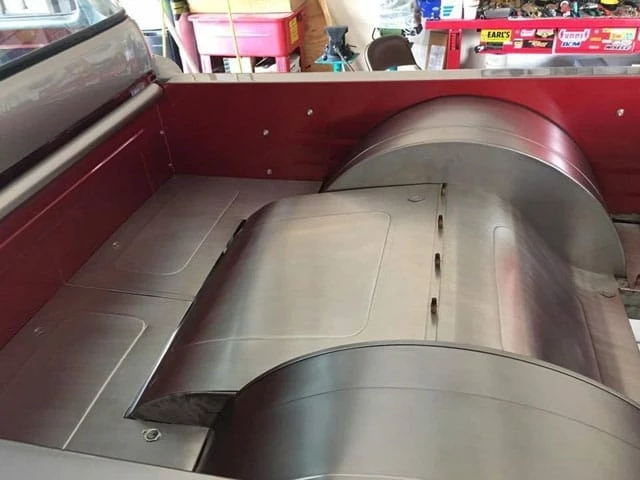

The Bead Roller Forming Dies enable you to take your already capable bead roller to the next level. This kit enables you to form, bend, stretch and strengthen metal. Fabricate custom panels and complex parts. Create style lines, offsets, deep channels, contours and other intricate forms in steel and aluminium. These are not compatible with the Eastwood 20622 Motorised Bead Roller.

Features at a glance:

• Fits most bead rollers with a 22mm shaft.
• Includes 9 steel dies and 1 polyurethane lower wheel

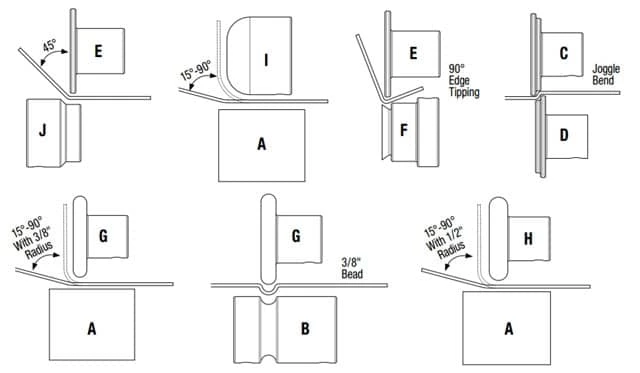

• Create offsets and flanges, form style lines, contours and channels
• Dies are machined out of CR12 steel with a 35 HRC hardness

Made for FROST – BUILT TO LAST !
